Multimodal reasoning represents the next frontier for AI products, challenging systems to process images, diagrams, and text simultaneously with human-like understanding. As you build products that must interpret graphs, solve mathematical problems from images, or analyze multiple visual inputs at once, proper benchmarking becomes essential to measure genuine progress and identify capability gaps.

This comprehensive guide examines the state-of-the-art benchmarks that define excellence in multimodal AI. We explore the architecture behind leading evaluation frameworks like MMMU and MathVista, revealing how even top models like GPT-4V achieve only 56-59% accuracy when faced with expert-level visual reasoning tasks.

The insights here will help you implement more effective evaluation strategies, understand where proprietary models outperform open-source alternatives by margins of up to 35%, and design architectures that address specific multimodal reasoning challenges in your products.

1. 1
   Fundamentals of multimodal reasoning components and architectures
2. 2
   MMMU benchmark: structure, performance metrics, and domain-specific insights
3. 3
   MathVista methodology and visual mathematical reasoning evaluation
4. 4
   Multi-image understanding frameworks (MuirBench, MMDU, Visual Haystacks)
5. 5
   MLLM-as-a-judge approaches for automated evaluation

Fundamentals of multimodal reasoning in AI systems

Let's begin by exploring the foundational elements that make multimodal reasoning possible in today's advanced AI systems.

Multimodal reasoning represents a core capability in advanced AI systems, enabling them to process, understand, and generate insights from multiple data types simultaneously. This complex functionality requires several interconnected components working in harmony.

Perception components

AI systems with multimodal capabilities must first effectively perceive visual information. This involves processing images, diagrams, charts, and other visual elements through specialized visual encoding models. These perception systems transform raw visual data into structured representations that can be aligned with textual information.

Visual inputs are encoded differently than text, requiring models to develop cross-modal understanding capabilities. The most advanced systems can identify objects, interpret spatial relationships, and extract relevant information from visual elements without explicit instruction.

Knowledge integration framework

Effective multimodal reasoning depends on the seamless integration of knowledge across modalities. Systems must align visual information with relevant textual knowledge, creating unified representations that preserve the unique characteristics of each modality.

This integration happens at multiple levels:

• At the feature level, models learn to map visual and textual elements to a shared embedding space
• At the semantic level, systems must understand how concepts represented visually relate to their textual descriptions

The most capable models create a coherent knowledge graph that connects information across modalities, allowing for bidirectional inference.

Reasoning pathways

Multimodal reasoning encompasses several distinct types of cognitive processes:

1. 1

   Algebraic reasoning

   Interpreting mathematical expressions, graphs, and equations
2. 2

   Spatial reasoning

   Understanding physical relationships between objects in visual scenes
3. 3

   Temporal reasoning

   Processing sequential information across time
4. 4

   Causal reasoning

   Identifying cause-effect relationships across visual and textual data

Each reasoning type requires specialized neural architectures optimized for that particular form of inference.

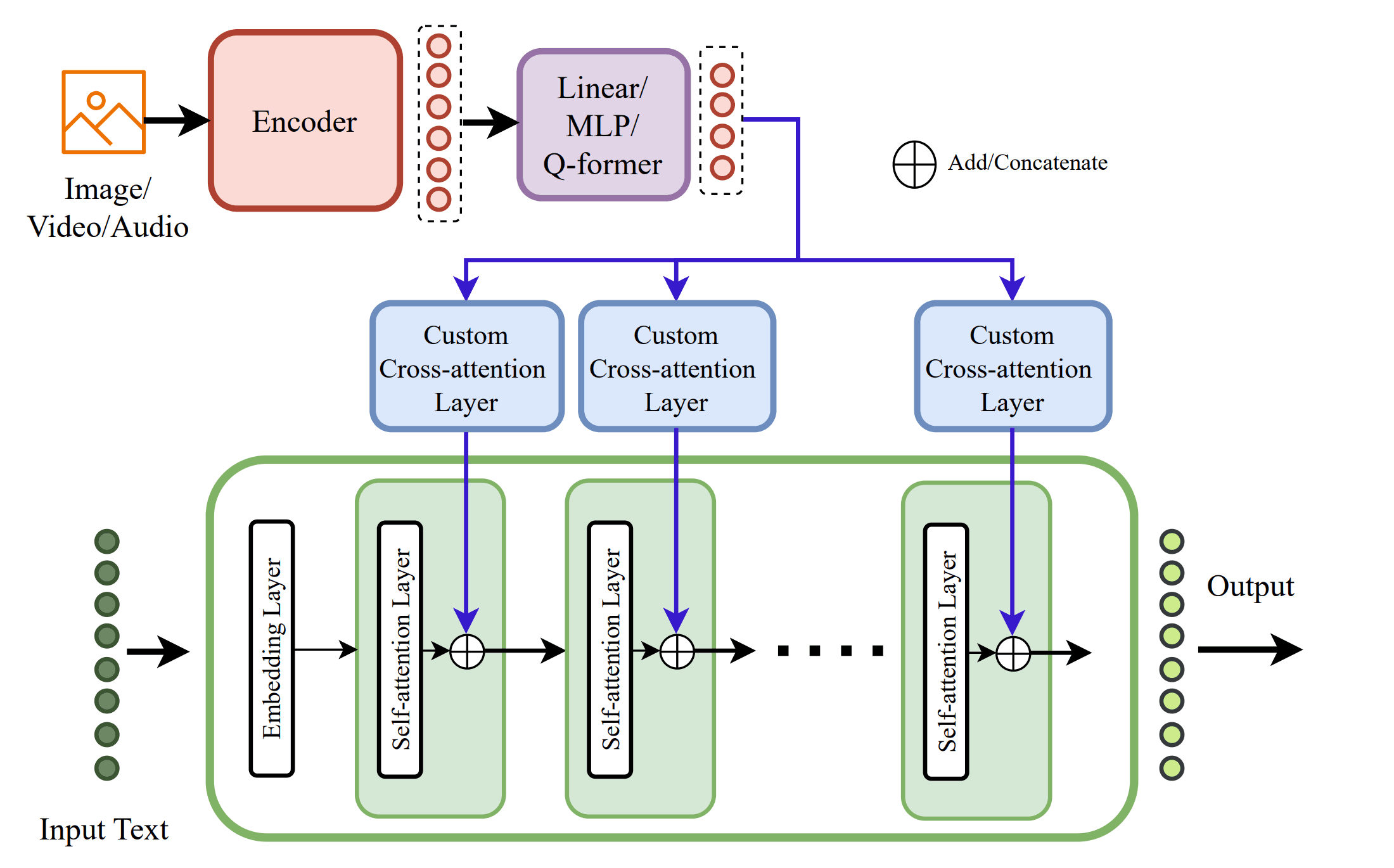

Implementation architecture

The standard architecture for multimodal reasoning follows a perception-knowledge-reasoning pipeline. Information flows from modality-specific encoders through integration layers and finally to reasoning modules that generate outputs.

Recent benchmarks like MMMU and Mathvista have demonstrated that effective multimodal reasoning systems benefit from specialized components for each reasoning task rather than a one-size-fits-all approach.

The most robust systems employ iterative reasoning processes, allowing them to revisit earlier interpretations based on new insights gained during reasoning.

These fundamental components provide the essential framework upon which more specialized benchmarks and evaluation methods are built, as we'll explore in the following sections.

MMMU benchmark: Architecture and performance metrics

Now that we understand the foundations of multimodal reasoning, let's examine how the MMMU benchmark evaluates these capabilities across diverse domains and knowledge areas.

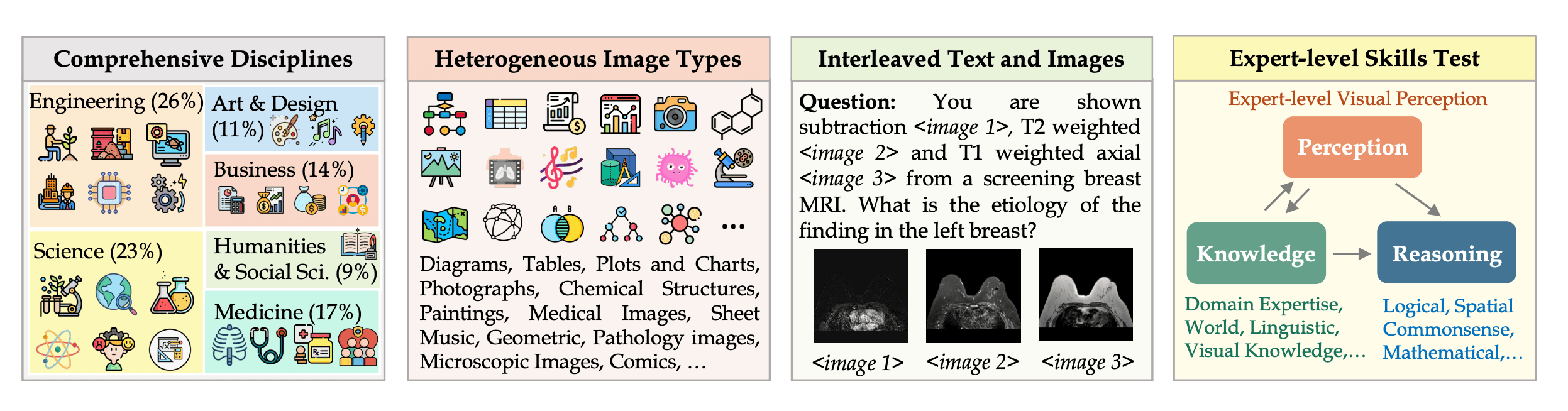

The Massive Multi-Discipline Multimodal Understanding and Reasoning (MMMU) benchmark sets a new standard for evaluating AI systems' multimodal capabilities across diverse fields. This comprehensive benchmark comprises 11,500 carefully curated questions sourced from college exams, quizzes, and textbooks.

Core structure and content

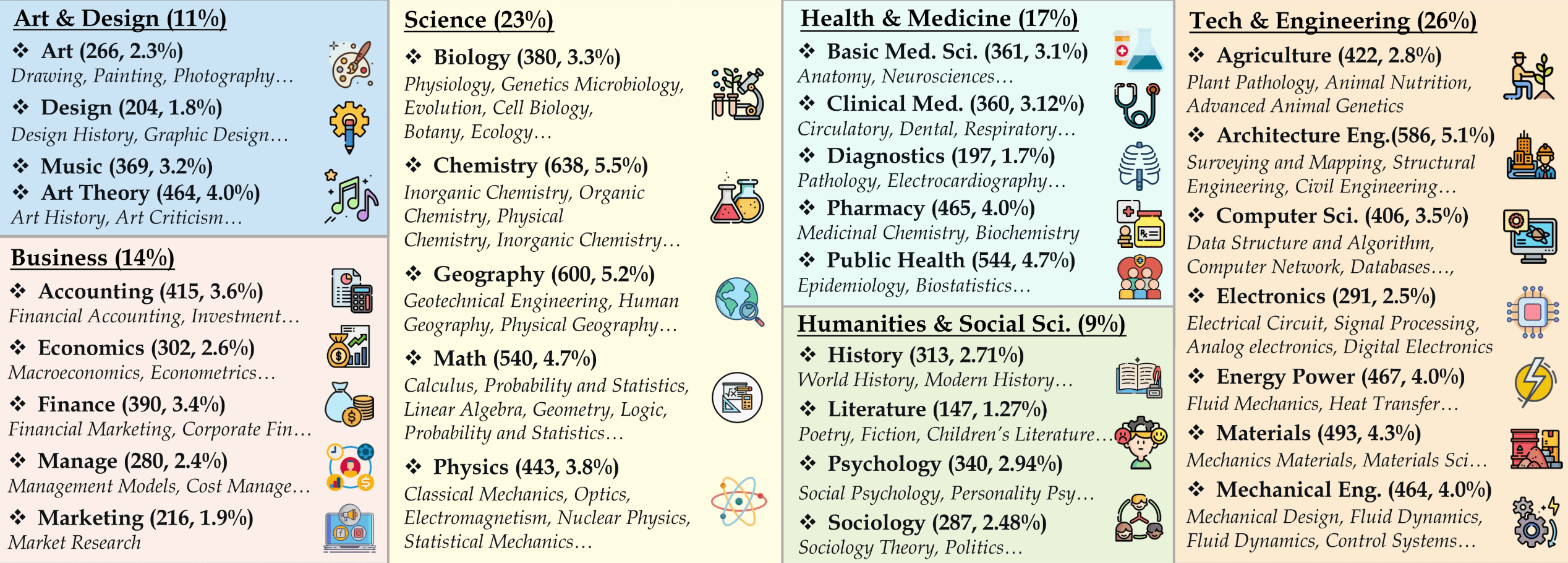

MMMU spans six core disciplines:

1. 1
   Art & Design
2. 2
   Business
3. 3
   Science
4. 4
   Health & Medicine
5. 5
   Humanities & Social Science
6. 6
   Technology & Engineering

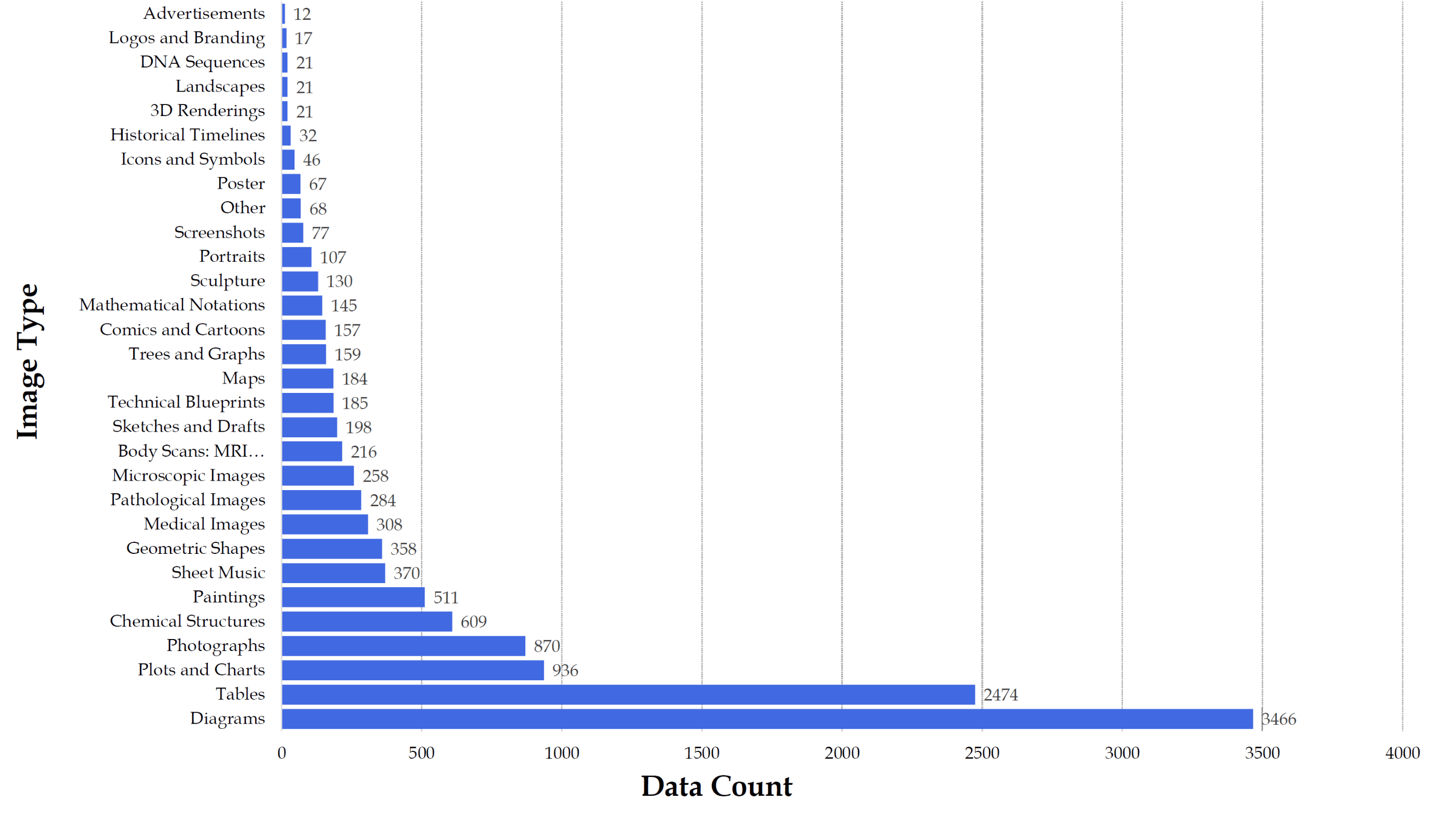

These questions cover 30 subjects and 183 subfields, featuring 30 heterogeneous image types including charts, diagrams, maps, and chemical structures.

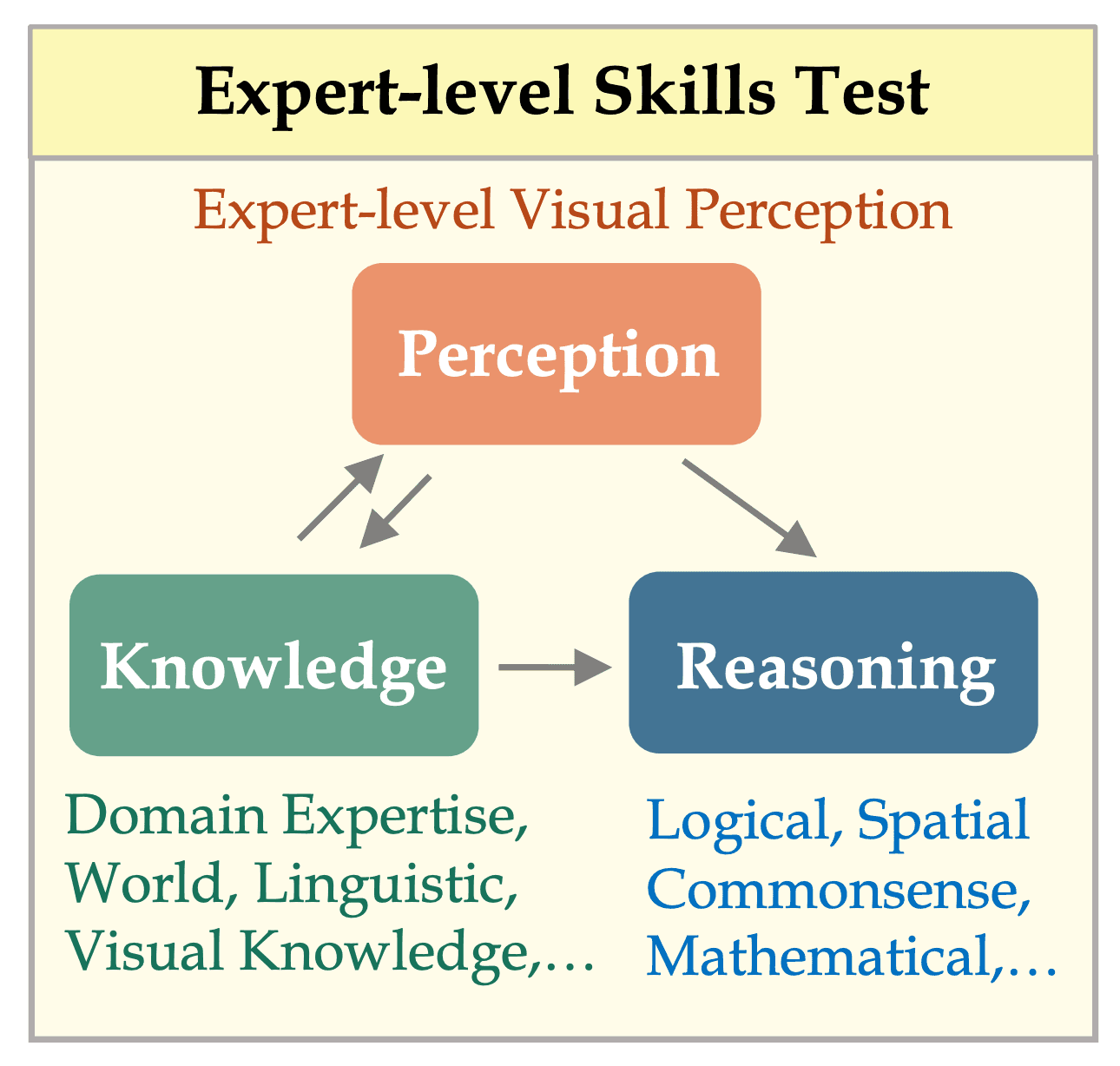

Unlike existing benchmarks, MMMU focuses on advanced perception and reasoning with domain-specific knowledge. It challenges models to perform expert-level tasks across multiple disciplines.

Evaluation methodology

The benchmark employs zero-shot assessment to test models' baseline capabilities without examples. This rigorous approach measures how well AI systems can apply knowledge to new problems without specific training.

Solution path annotation is a key component of MMMU's evaluation framework. It uses depth-first search decision trees to robustly evaluate reasoning abilities across different steps of problem-solving.

Performance comparison

The MMMU benchmark reveals fascinating performance differences across models. Let's look at the latest results till April 2025:

The newest models show much better scores on MMMU than previous generations. Model such as GPT-4V and Gemini Ultra achieve only 56-59% in mid 2024. Llama 4 Behemoth leads at 76.1%, showing size still matters for complex reasoning tasks.

Surprisingly, Llama 4 Maverick achieves 73.4% despite being only 17B in size. This shows smart design can beat raw size. The same model family's Scout variant (also 17B) scores 69.4%.

Models from early 2025 generally outperform those from late 2024. This suggests rapid progress in multimodal reasoning capabilities.

The gap between top and bottom performers is about 12%. This is still a big difference when solving real-world visual reasoning problems.

Even the best models score below 80%. This shows multimodal reasoning remains challenging for AI systems. There's still room for significant improvement before reaching human-expert level performance.

Domain-specific performance

Performance varies significantly across different subject domains. Models typically perform better in fields with more visual standardization like mathematics and engineering, while struggling with domains requiring specialized knowledge such as medicine.

The benchmark reveals that understanding complex visual elements combined with domain expertise remains challenging for current AI systems.

Cost-efficiency considerations

Evaluating different model architectures on MMMU reveals important cost-efficiency tradeoffs:

• Larger models generally perform better but require significantly more computational resources
• Some specialized smaller models achieve competitive performance in specific domains at a fraction of the computational cost, suggesting that targeted architecture design may be more efficient than scaling for domain-specific tasks

The insights from MMMU provide valuable guidance for developing more capable multimodal reasoning systems, particularly in specialized domains that require expert-level knowledge.

MathVista: Visual Mathematical Reasoning Evaluation

Moving from the comprehensive nature of MMMU, let's now focus on a benchmark specifically designed to evaluate mathematical reasoning in visual contexts.

MathVista is a comprehensive benchmark designed to evaluate how well AI models reason mathematically in visual contexts. The dataset comprises 6,141 examples collected across 28 existing datasets and 3 specialized additions, creating a diverse testing ground for visual mathematical reasoning.

Dataset structure and composition

MathVista's strength lies in its diversity, spanning multiple mathematical domains and visual formats. The benchmark aggregates problems from various sources to ensure broad coverage of mathematical concepts presented visually. Examples include interpreting graphs, diagrams, charts, and other visual representations that require mathematical analysis.

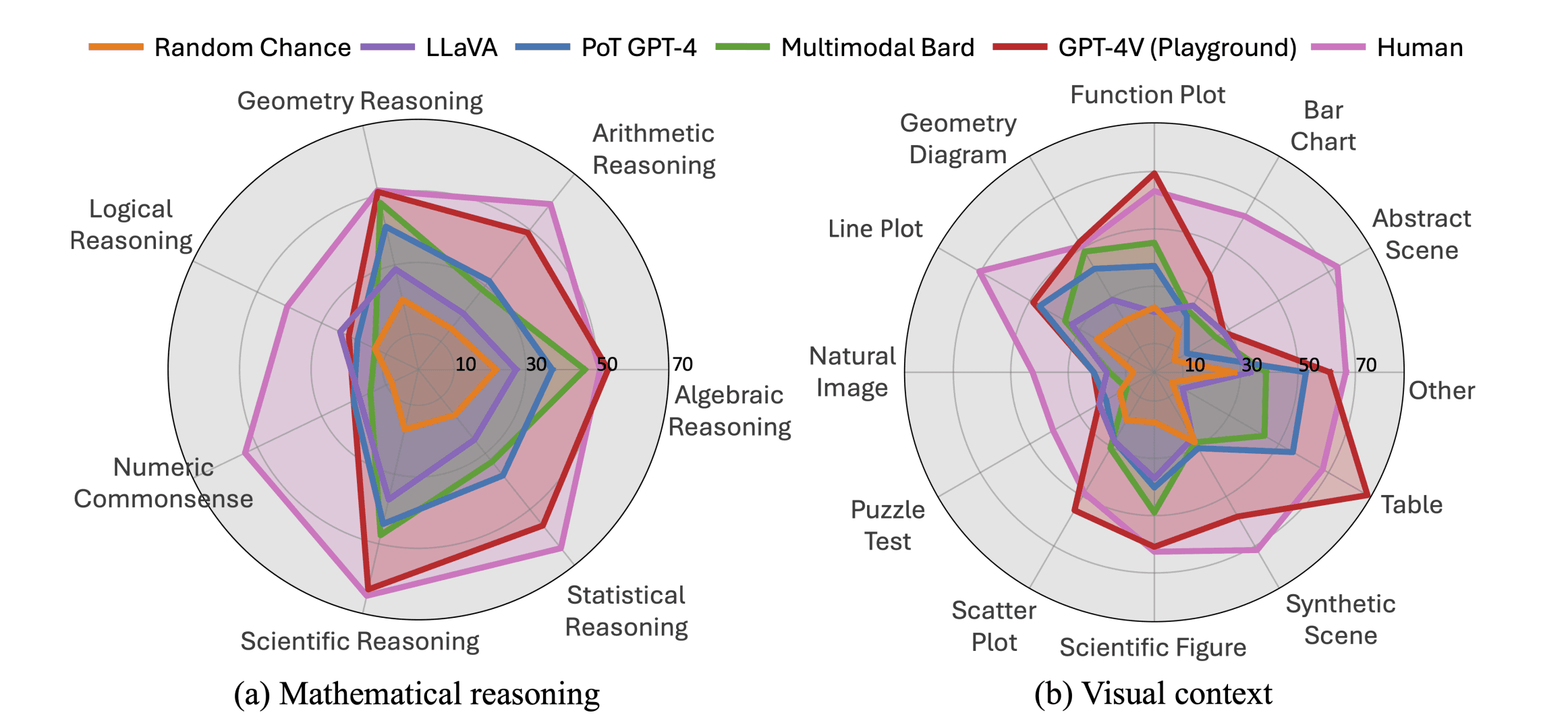

The two images above shows the data composition of the MathVista benchmark dataset | Source: A Massive Multi-discipline Multimodal Understanding and Reasoning Benchmark for Expert AGI

Three-stage evaluation pipeline

Models are assessed through a rigorous three-stage process when tackling visual math problems:

1. 1

   Stage 1

   The system processes the image to extract relevant visual information
2. 2

   Stage 2

   It applies mathematical reasoning to the extracted data
3. 3

   Stage 3

   It generates a solution that addresses the specific question

This structured approach allows researchers to pinpoint where models succeed or struggle in the visual-mathematical reasoning chain.

Self-verification techniques

Several performance-boosting techniques have emerged to enhance model capabilities on MathVista:

• Self-verification methods: Allow models to check their own reasoning and answers for consistency and accuracy
• Self-consistency approaches: Generate multiple solution paths and select the most frequently occurring answer, significantly improving performance on complex visual mathematical problems

Performance analysis

Despite recent advances, a substantial 10.4% performance gap remains between top-performing models and human experts on MathVista. This gap highlights the ongoing challenge AI systems face in matching human-level reasoning capabilities when mathematics intersects with visual understanding.

Here's how different models perform on the MathVista benchmark in late 2024 - March 2025:

Kimi models are leading the pack in math reasoning. The newest Kimi-k1.6-preview scores 80% on MathVista.

Doubao-pro-1.5 is close behind at 79.5%, showing strong math capabilities.

Interestingly, Ovis2-34B scores 77.1% despite having fewer parameters than some competitors.

Model size doesn't always predict performance. QVQ-72B and Qwen2VL-72B have larger parameter counts but score lower. The newest models (2025 releases) perform better than older ones (2024 releases). This shows rapid improvement in visual math reasoning. Even the best model at 80% means there's still a 20% gap to perfection. Math reasoning with images remains challenging for AI.

Common failure modes

Models frequently struggle with:

• Complex figure interpretation
• Multi-step reasoning tasks
• Accurately parsing intricate diagrams
• Maintaining precision through extended calculation sequences
• Applying the correct mathematical concepts to visual data

These failure modes provide valuable insights for researchers working to improve visual mathematical reasoning in AI systems.

MathVista's focused approach to evaluating mathematical reasoning in visual contexts complements the broader MMMU benchmark, providing deeper insights into this specific but crucial aspect of multimodal reasoning.

Multi-image understanding frameworks: MuirBench, MMDU, and Visual Haystacks

While previous benchmarks focused on single-image understanding with text, real-world applications often require reasoning across multiple images simultaneously. Let's explore how specialized frameworks evaluate this complex capability.

Understanding multi-image reasoning benchmarks

Multi-image reasoning benchmarks represent a significant evolution in evaluating AI systems' ability to understand relationships across multiple images. MuirBench, MMDU (Multi-Modal Dual Understanding), and Visual Haystacks each test distinct capabilities in processing and reasoning with multiple visual inputs simultaneously.

These frameworks go beyond simple image understanding to assess complex relational reasoning between separate images. Their development addresses the growing need for AI systems to process visual information in more natural, contextual ways.

Technical challenges in multi-image processing

Processing multiple images presents significant technical hurdles for current AI architectures:

Most models struggle when handling more than two or three high-resolution images simultaneously.

Performance gap between proprietary and open-source models

A striking performance disparity exists between proprietary and open-source models on multi-image tasks:

• Proprietary models: ~68% accuracy on standard multi-image benchmarks
• Open-source models: ~33% accuracy on identical tasks

This performance gap is much wider than in single-image tasks, indicating that multi-image reasoning represents a particularly challenging frontier for open-source development.

Implementation architecture requirements

Effective multi-image understanding requires specialized architectural considerations:

1. 1
   Enhanced visual attention mechanisms capable of forming connections between separate image inputs
2. 2
   Context window optimizations to accommodate multiple high-resolution images
3. 3
   Memory management techniques for efficient resource allocation

Successful implementations typically employ efficient token usage strategies or specialized image encoding techniques.

Dataset composition and evaluation methodologies

Benchmark datasets for multi-image reasoning feature carefully curated image pairs or groups that test specific cognitive abilities:

• Comparison tasks: Finding similarities/differences
• Temporal reasoning: Understanding sequences
• Compositional reasoning: Combining information across images

Evaluation methodologies focus on measuring accuracy in relationship identification rather than simple object recognition. Questions are designed to be impossible to answer from any single image alone, requiring true multi-image reasoning.

Some frameworks employ synthetic data generation to systematically test specific reasoning capabilities, while others use naturally occurring image collections that better represent real-world scenarios.

The challenges in multi-image reasoning highlight the need for both architectural innovation and improved evaluation methods, particularly as applications increasingly demand the ability to process multiple visual inputs simultaneously.

Automated evaluation using MLLM-as-a-judge frameworks

Beyond creating better benchmarks, the field has also developed innovative methods for evaluation itself. Let's explore how AI systems can be used to evaluate other AI systems in multimodal reasoning tasks.

The LLM-as-a-judge approach has emerged as a powerful method for evaluating large language models, particularly for multimodal tasks. This evaluation paradigm leverages stronger models to assess the outputs of other models, providing a scalable alternative to human evaluation.

Evaluation methodologies

Three primary evaluation approaches have gained prominence in automated multimodal assessment:

1. 1

   Pointwise scoring

   Models evaluate individual outputs on specific criteria, assigning numerical scores that quantify performance
2. 2

   Pairwise comparison

   Two model outputs are evaluated side-by-side to determine which response is superior
3. 3

   Listwise ranking

   Multiple outputs are ranked in order of quality, providing relative performance indicators

Each methodology offers different insights, with researchers often combining approaches for comprehensive assessment.

Multimodal evaluation frameworks

Several frameworks have been developed specifically for multimodal model evaluation:

These frameworks enable systematic assessment of how well models process combined visual and textual information.

Correlation with human judgment

A key advantage of MLLM-as-a-judge frameworks is their alignment with human assessments:

• Recent implementations have achieved Spearman correlations of up to 0.96 with human evaluators
• This indicates strong agreement between automated and human judgments
• High correlation allows for efficient, large-scale evaluations without sacrificing quality

Mitigating bias in automated systems

Despite their effectiveness, these evaluation systems can inherit biases from their training data. Researchers are implementing several approaches to address this challenge:

• Specialized LLMs trained to detect and flag biases in model outputs
• Diverse evaluation criteria that assess multiple dimensions of performance
• Balanced reference datasets that reduce demographic and cultural biases

The main challenge remains interpreting evaluation outcomes, as the complexity of the evaluative LLM can sometimes obscure the reasoning behind specific ratings.

The advancement of automated evaluation frameworks represents a significant step forward in scaling assessment of multimodal reasoning capabilities, enabling more rapid iteration and improvement in model development.

Conclusion

Understanding and implementing appropriate multimodal reasoning benchmarks is critical for developing truly capable AI products. The significant performance gaps revealed across MMMU, MathVista, and multi-image benchmarks highlight both the progress made and challenges ahead in visual-mathematical reasoning, domain expertise integration, and cross-image understanding.

For implementation, consider these technical takeaways:

• Specialized components outperform one-size-fits-all approaches for specific reasoning tasks
• Attention mechanisms need optimization for multi-image processing
• Automated evaluation frameworks can achieve near-human judgment quality with properly designed criteria

Product managers should prioritize domain-specific performance metrics rather than general benchmarks, as the 15-20% accuracy variation across disciplines will impact user experience in specialized applications. AI engineers should focus on the perception-knowledge-reasoning pipeline, implementing iterative reasoning processes that allow systems to revisit earlier interpretations.

Strategically, the substantial performance gap between proprietary and open-source models (particularly the 35% difference in multi-image tasks) represents both a competitive opportunity and an investment consideration as you allocate resources to areas where your product can establish meaningful differentiation.
